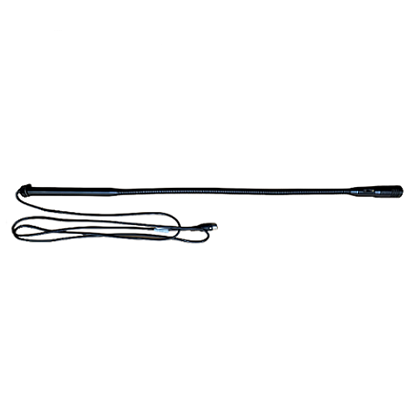

DM-800 Dynamic Gooseneck Driver Microphone

WELBUS dynamic gooseneck microphone, with an on/off switch attached directly onto the microphone. This microphone comes in both 800 and 490 mm in overall length, for varied requirements of use.

Available with a standard 4 pin connector or a 5 pin Actia version, or a 6.35mm jack.

Installation options : vertical or horizontal installation

Specifications

>Power supply: unnecessary due to dynamic microphone

>Directivity: cardioid

>Temperature: -20℃ to 70℃

>Frequency 100Hz-14KHz

>Resistance: 600Ω±30%

>Sensitivity : -54dB±1.5dB

>Connector type: 4-PIN BOSCH DIN male or 5-PIN ACTIA DIN male, or 6.35mm Jack

>Other connector type: customizable

>Gooseneck diameter: Φ 14mm

>Overall length:800MM or 490MM available

>Installation options: Vertical or Horizontal
