GM-05A 5-PIN ACTIA Dynamic Coach Tour Guide Microphone
GM-05A 5-PIN ACTIA Dynamic Coach Tour Guide Microphone GM-05A 5-PIN ACTIA Dynamic Coach Tour Guide MicrophoneGM-05A 5-PIN ACTIA Dynamic Coach Tour Guide MicrophoneGM-05A 5-PIN ACTIA Dynamic Coach Tour Guide Microphone

GM-05A 5-PIN ACTIA Dynamic Coach Tour Guide Microphone

Dynamic Microphone
Spiral Cable
for ACTIA Audio system
5-PIN handheld microphone

The GM-05A microphone is designed to be connected to ACTIA coach audio system. Made of aluminium alloy, the microphone is light in weight and comes with a retractable spiral cable that provides the tour guide with a sufficient range of movement on the coach. The mounting accessories ensure that the microphone can be securely fastened in the cockpit.


Connector options are available with a standard 4-PIN BOSCH version or 6.35mm jack


Specifications



Power Supply: unnecessary due to dynamic microphone

Operating Temperature: -25℃ to 65℃

Total Length: 141mm

Length of Spiral cable: 112CM when retracted, 4M when fully stretched

Handle Material: Aluminium alloy

Frequency:50-10000Hz

Sensitivity :-52.5 dB±1.5dB

Impedance: 600 OHM ±30%

Total Length: 141mm

Connector: DIN 5-PIN Male

Cable detachable

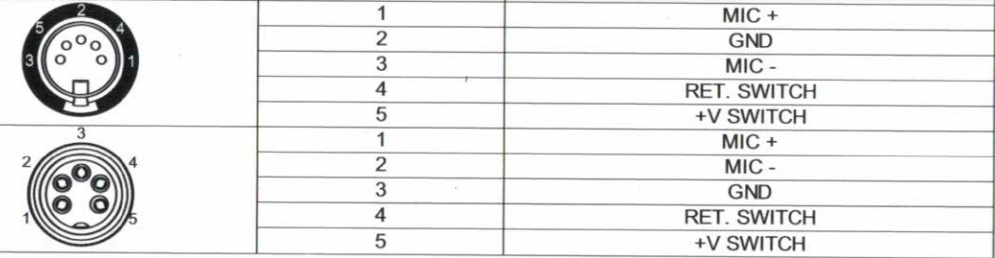

Pin Definitions:

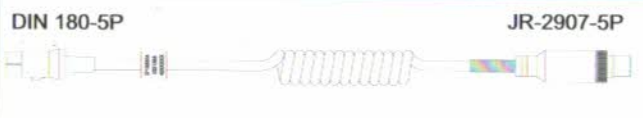

Dimensions:
