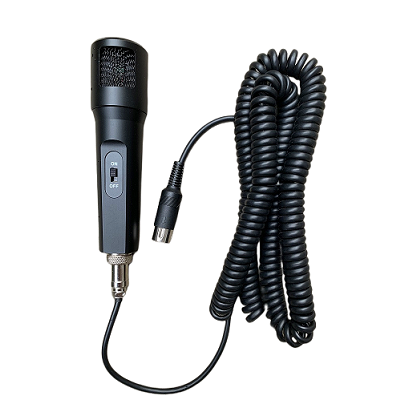

GM-05D 5-PIN ACTIA Coach Dynamic Handheld Microphone

The GM-05D microphone is designed to be connected for ACTIA coach audio system. Made of aluminium alloy, the microphone is light in weight and comes with a retractable spiral cable that provides the tour guide with a sufficient range of movement on the coach. The mounting accessories ensure that the microphone can be securely fastened in the cockpit.

Connector options are available also with a standard 4-PIN BOSCH version or 6.35mm jack

Specifications

Power Supply: unnecessary due to dynamic microphone

Operating Temperature: -25℃ to 65℃

Total Length: 145mm

Length of Spiral cable: 112CM when retracted, 4M when fully stretched

Handle Material: Aluminium alloy

Frequency:50-10000Hz

Sensitivity :-52.5 dB±1.5dB

Impedance: 600 OHM ±30%

Total Length: 145mm

Connector: DIN 5-PIN Male

Cable detachable

Dimensions:
